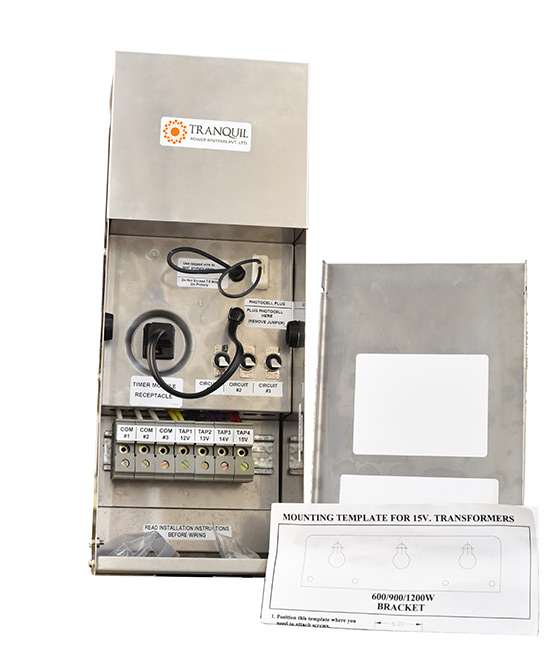

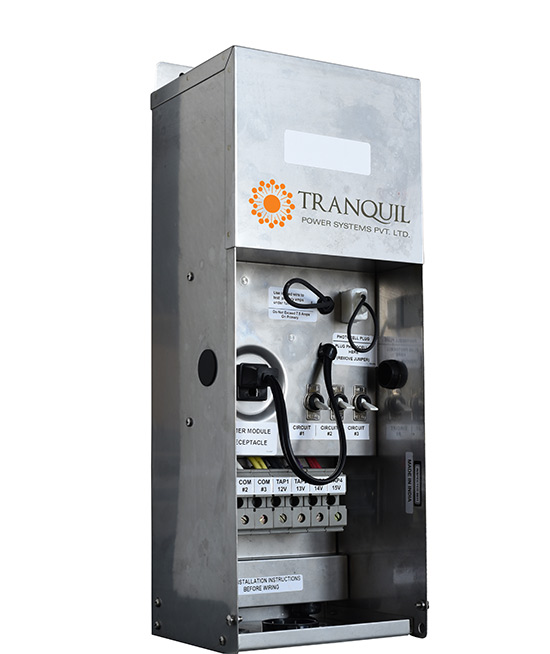

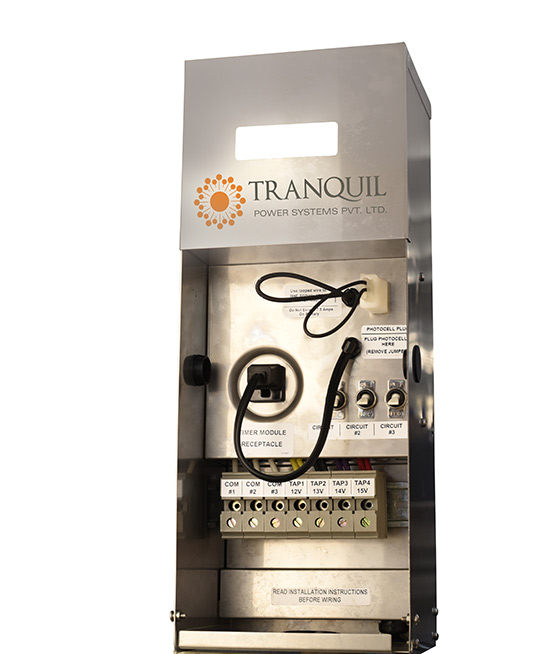

Landscape lighting Voltage Transformer 900w

  1. Home
  2. Products
  3. Multi-tap Transformers
  4. Product Details

Product Details

  • The Transformer used in the power supply unit manufactured as per the UL norms.
  • Transformer will be potted/sealed in an enclosure using Epoxy (mixture of Resin & Hardener) which ensures high reliability and efficiency.
  • The enclosure is made up of Prime Stainless Steel material SS 304 grade (also carbon steel with powder coated enclosure can be provided on request )
  • Circuit breaker(25A x 3) provided for circuit protection.
  • Block Terminals will provide the easiest way for the customer to connect the secondary tappings.
  • Photocell and timer connected as per the customer needs

Technical Details

  • Wattage - 900w
  • Frequency - 50/60 Hz
  • Pry. voltage - 120V /277V
  • Sec... voltages – As per customer requirements
  • Insulation class – F, H
  • Max. regulation – 7.5%
  • Dielectric – 2000v, primary to secondary for 1 second.
  • Dielectric – 2000v, all windings to lamination for 1 second.
