Current Transformer

A current transformer is defined as "as an instrument transformer in which the secondary current is substantially proportional to the primary current (under normal conditions of operation) and differs in phase from it by an angle which is approximately zero for an appropriate direction of the connections." This highlights the accuracy requirement of the current transformer but also important is the isolating function, which means no matter what the system voltage the secondary circuit need be insulated only for a low voltage.

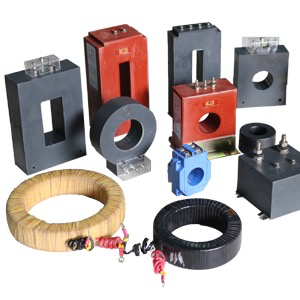

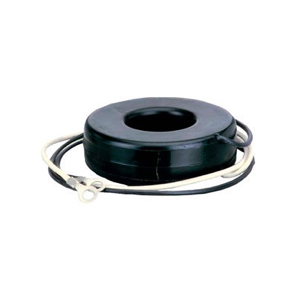

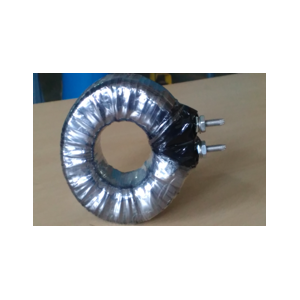

We specialize in offering quality L.V. Tape Wound & Cast Resin Transformers of multi range that is manufactured using quality components, which are procured from reliable vendors. These are acknowledged among clients for long functional life, high efficiency, hassle free performance and robust construction. These are widely used in various industries for measuring, protection & for special protections purpose (CLASS: PS) (restricted earth fault & differential protection systems)

  • Insulation Class as per IS(A,E,B,F,H)
  • Available in 5/10A secondary ratings
  • Available up to 1000A primary current
  • Resin cast also available
  • Precise design involved to reduce phase angle errors
  • Complete isolation from the circuit to be measured (no ground currents)
  • Shielded construction
  • Internal 50 ohm termination for coaxial cable matching
  • High accuracy (±0.5%)
  • A variety of hole sizes to fit most conductors and voltages
  • We follow IS 2705
  • Compatible with IEC 61869-1
  • Compatible to ANSI standards
  • Used in try vector meters
  • Used in power and current measurement in AC circuits
  • Used in fault control in power plants
  • Used in instrument panels
  • Motor-generator sets
  • Commercial metering
  • Current sensing, recording, monitoring & control
  • Control panels (VCB ,AMF,APFC ,MCC ,PCC & Relay Panels) and Drives
  • Standard CT for laboratory purposes
  • Earth fault protection/Differential protection/Bus-bar protection Systems
  • Bushing type, oil-immersed CT in power transformer
