Landscape lighting Voltage Transformer
The Transformer used in the power supply unit manufactured as per the UL norms.
Transformer will be potted/sealed in an enclosure using Epoxy (mixture of Resin & Hardener) which ensures high reliability and efficiency.

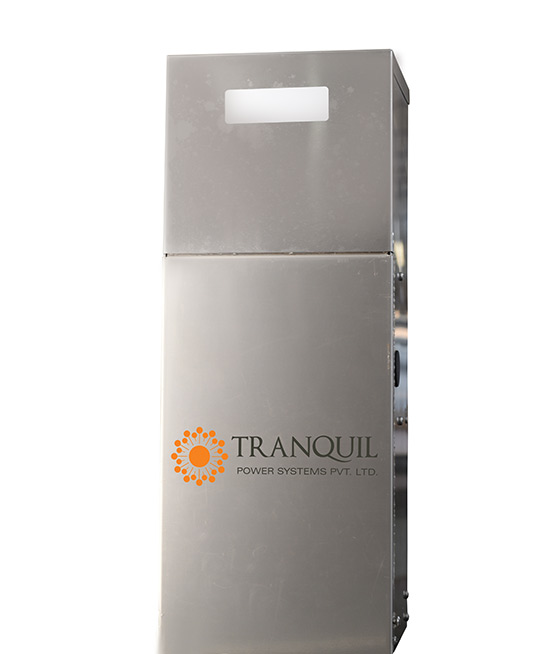

The enclosure is made up of Prime Stainless Steel material SS 304 grade (also carbon steel with powder coated enclosure can be provided on request )

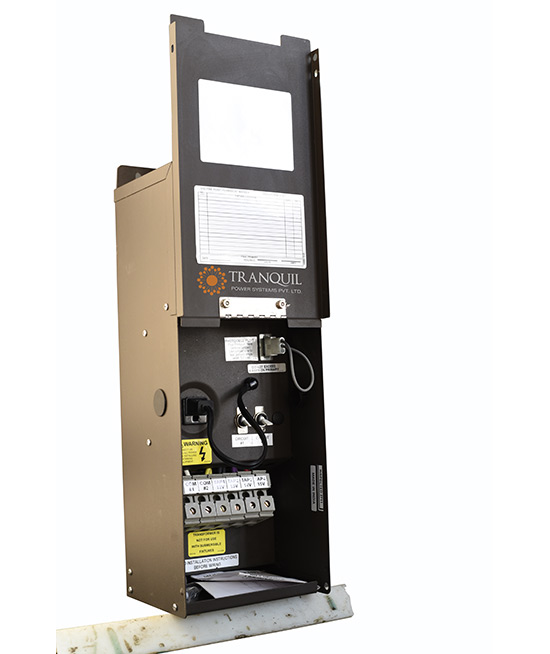

Circuit breaker(25A x2) provided for circuit protection.

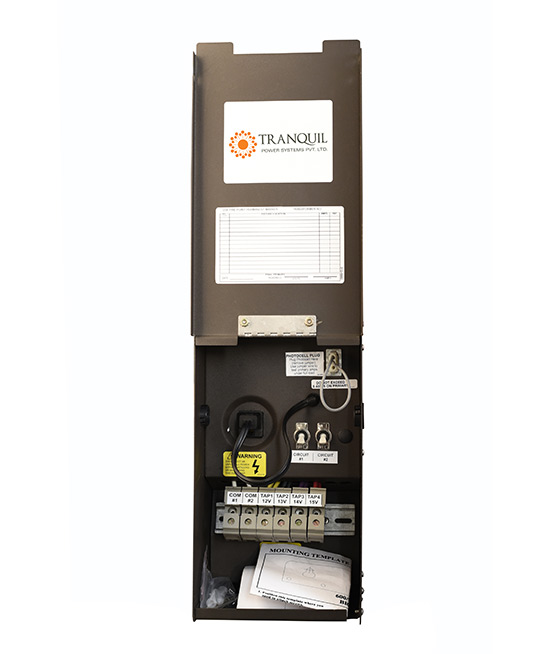

Block Terminals will provide the easiest way for the customer to connect the secondary tappings.
Photocell and timer connected as per the customer needs
Wattage - 600w
Frequency - 50/60 Hz
Pry. voltage - 120V /277V
Sec... voltages – 12, 13, 14, 15V
Insulation class – F, H
Max. regulation – 10%
Dielectric – 2000v, primary to secondary for 1 second.
Dielectric – 2000v, all windings to lamination for 1 second.
